Product Description
Note:
The welder is equipped with two capacitors of 3300μF. After the power switch is turned off, the capacitor is discharged again. This process lasts about 6-12 seconds, so the machine will not be shut down immediately after the power switch is turned off, and the screen will be turned off and the fan will stop running after 6-12 seconds.

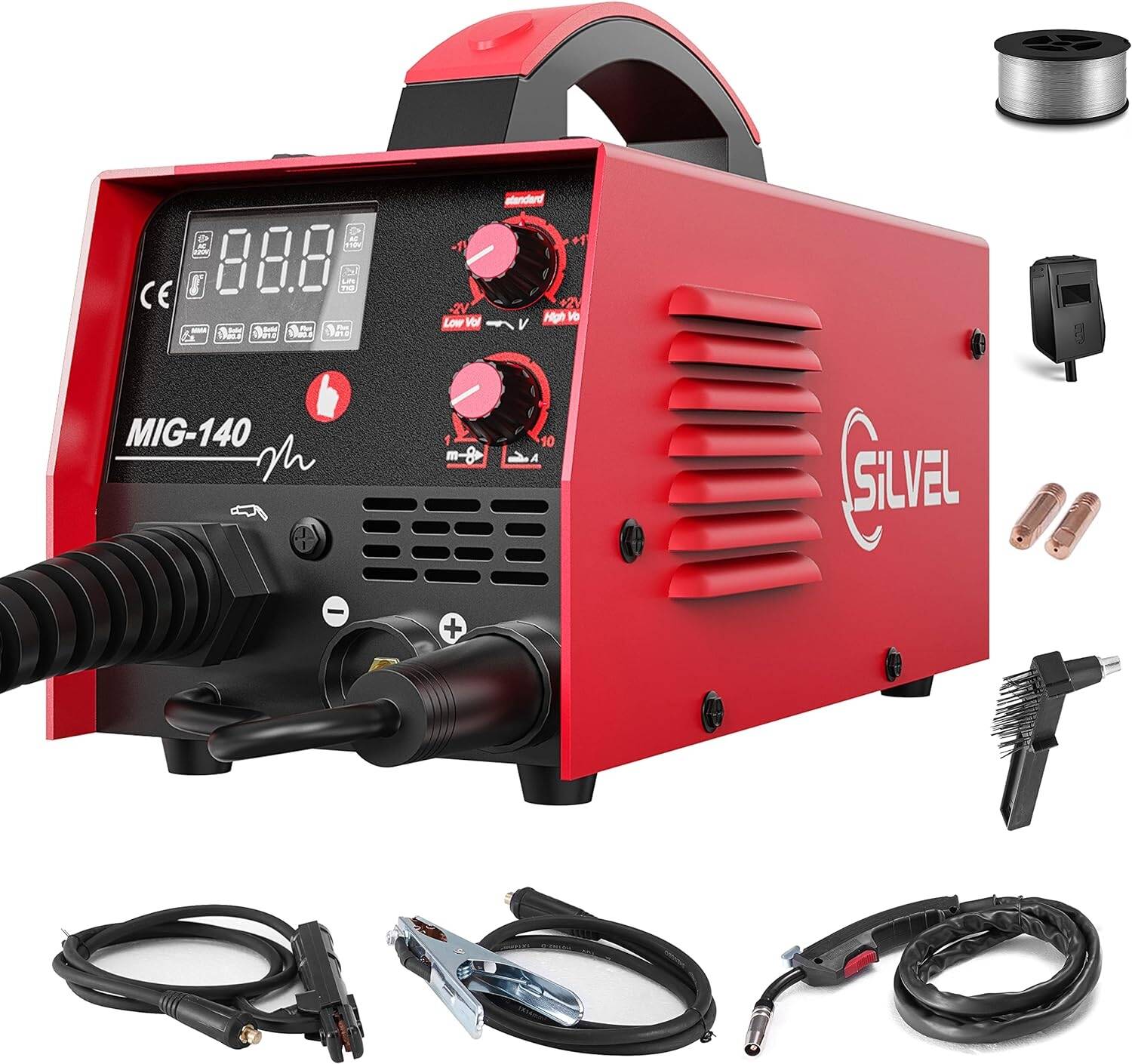

Product List:
- 1* SILVEL MIG Welder
- 1* MIG Welding Torch
- 1* Welding Grounding Clamp
- 1* Welding Holder
- 1* Flux-Cored Welding Wire
- 1* Welding Mask
- 1* Welding brush
- 2* Nozzle
- 1* User Manual
SILVEL 140A 3 In 1 MIG DC Inverter Welder
Perfect Gift for Dad, Friends, Husband, Gardener, DIY lovers.

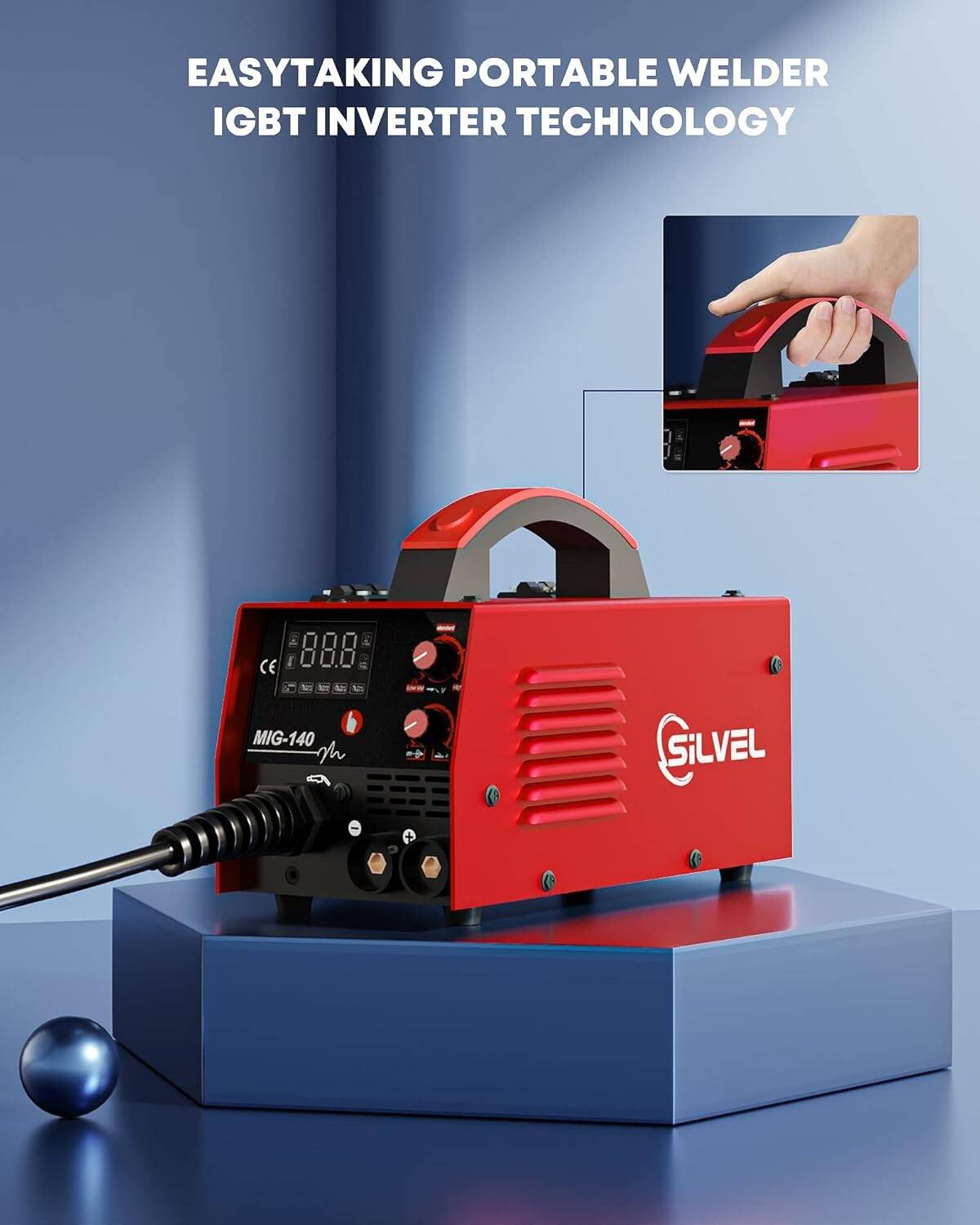

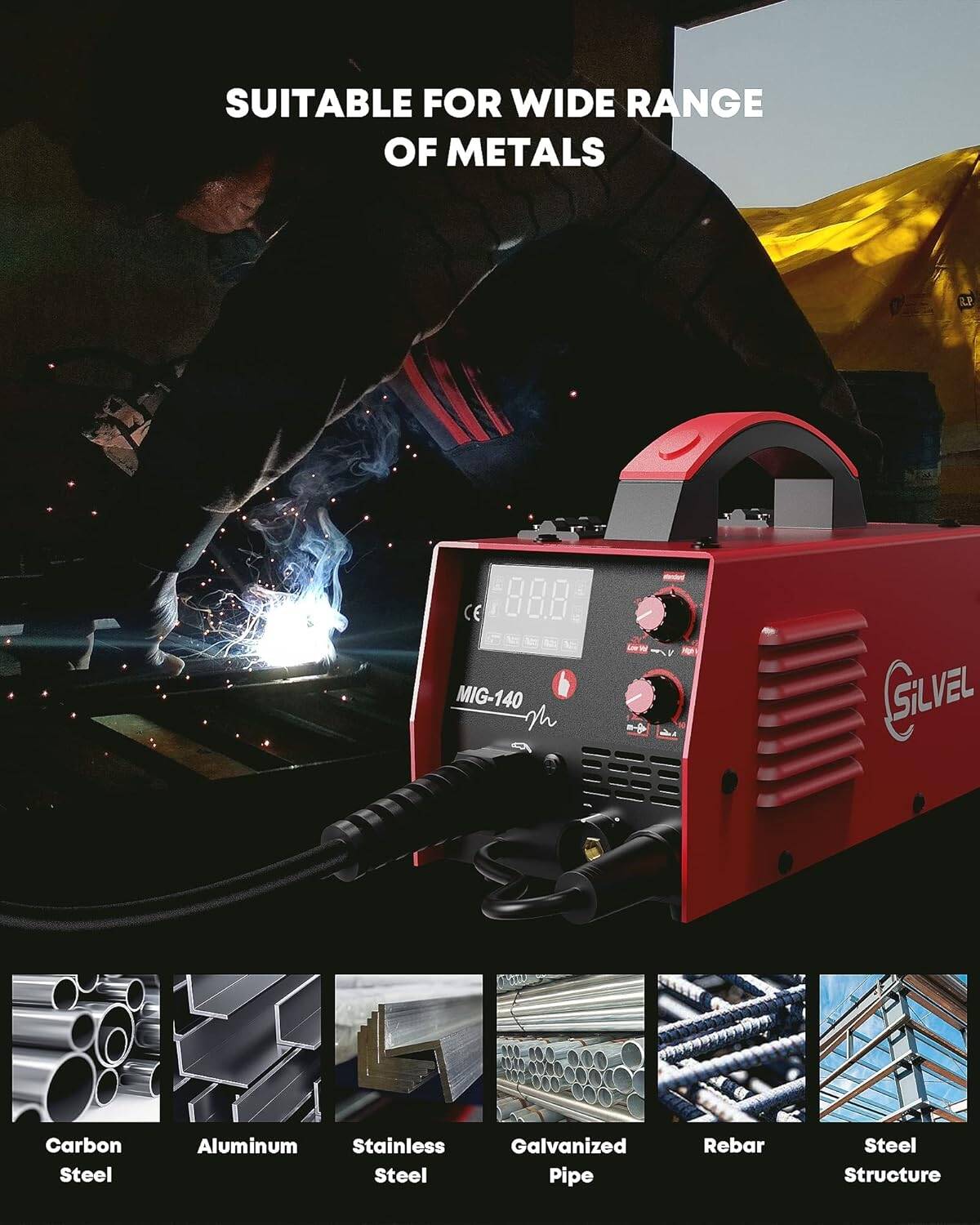

The welder has combo MIG MMA TIG mode. With synergic control, automatic change of the voltage & wire feeding speed. It adopts the IGBT inverter technology with excellent arc stability. Suitable for welding carbon steel, iron, stainless steel, and other metals.
The welder has a built-in automatic protection function for over-current, over-voltage and over-heating. It’s also ideal for outdoor repairs, rusty metal, farm, and maintenance, repairs and DIY.
- Mode: Gas/Gasless MIG, Lift TIG, Stick(MMA, ARC)
- Rating Voltage: 110V, 50Hz
- Duty Cycle: 30%@140A
- Rated output current: 140 Amp
- Usable wire: Φ0.8-1.0mm(flux-cored)
- Size: 13.4“ X 5.9” X 6.9“
- Package Weight: 16.53 lbs
- Protection: IP21S , Insulation: H
Speed Controllable

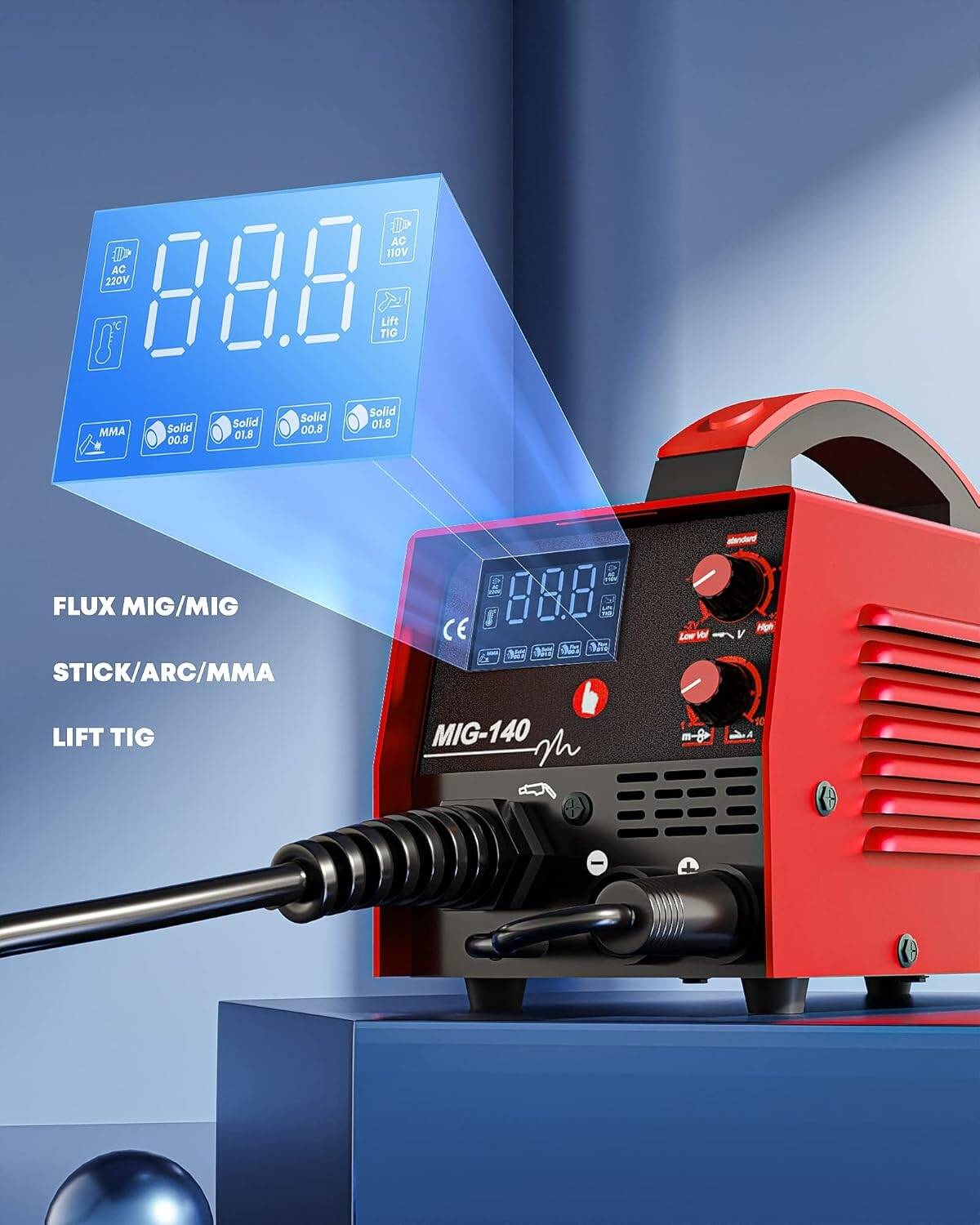

With voltage control knob and wire speed adjustment knob, you can easily adjust the current flow and wire feeding speed. The digital display can also help you set a suitable speed and current from 0-140A.

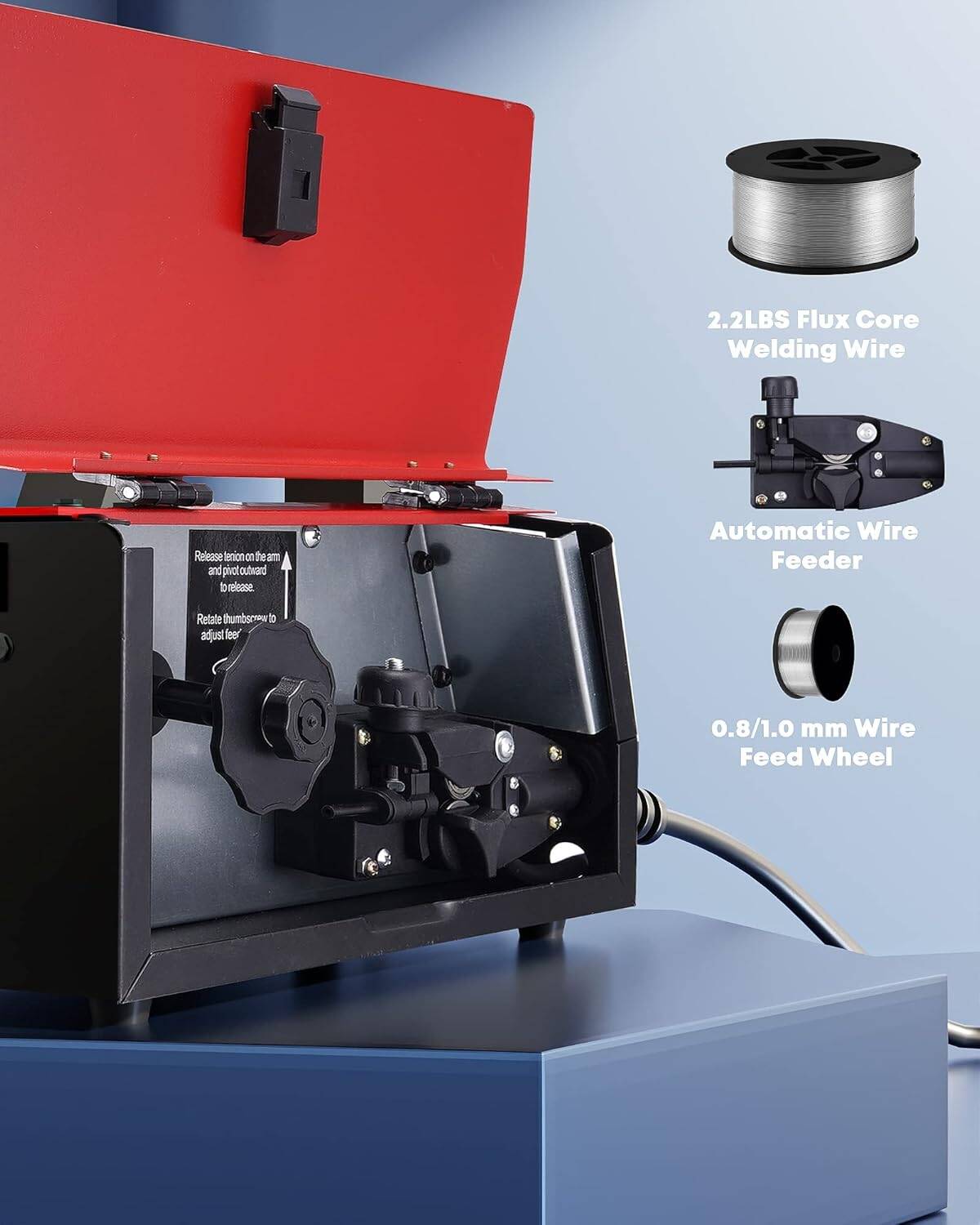

Automatic Flux Cored Wire Feeder
This wire feed welder uses convenient flux cored wire, which releases metal-inert gas during welding to prevent weldment oxidation. It can weld 0.03″&0.035″ welding wire. High-quality integrated wire feeder to ensure smooth wire feeding.
MIG Torch
Ready to feed 0.30″ and 0.35″ diameter welding wire. Easily control the start and stop of the wire feeding by pressing and releasing the switch.You can also switch between MIG gas and gasless mode by replacing nozzle, torch base and welding wire.

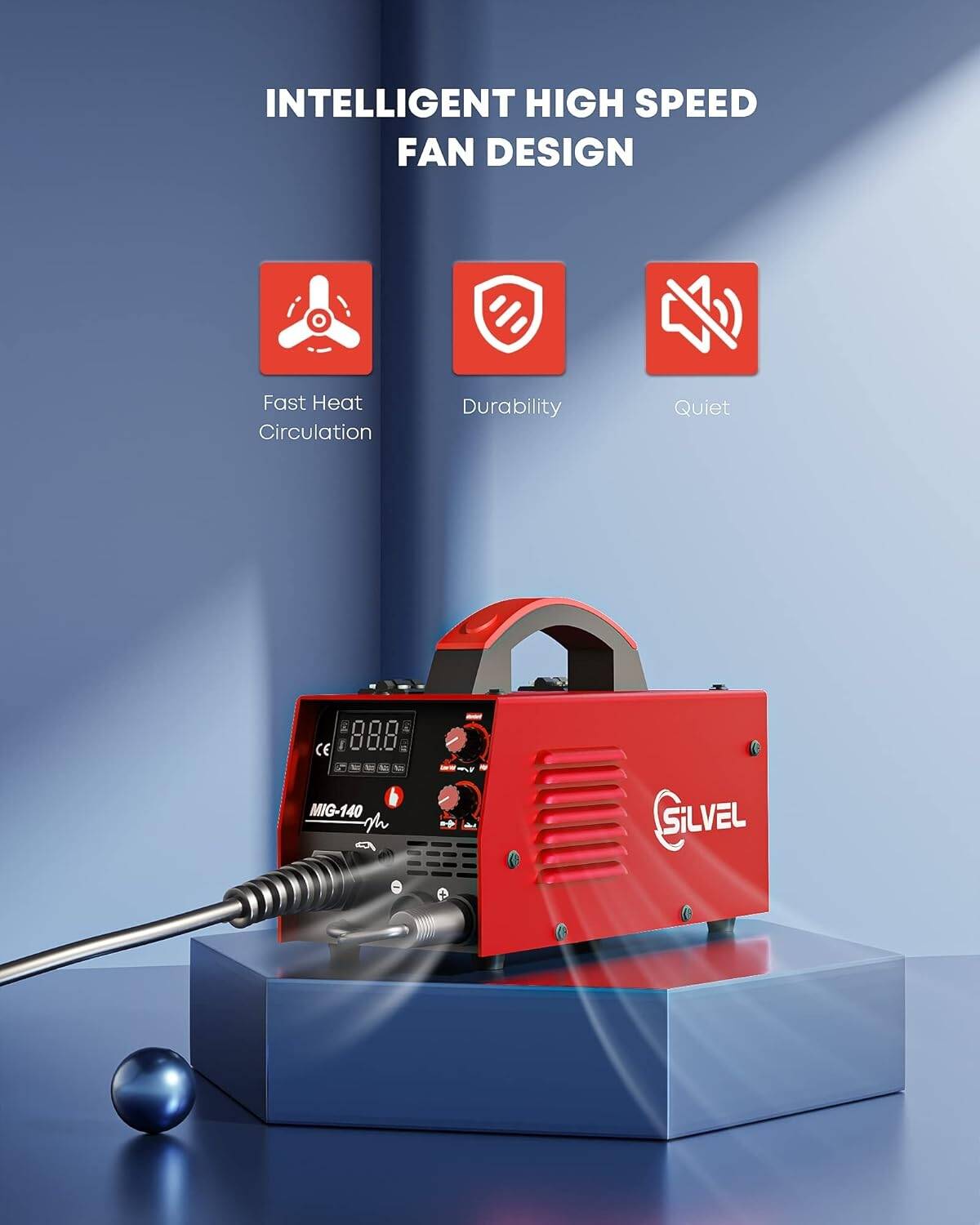

Over Heat Protective Vent
The side vent and rear vent of this welding machine have good heat dissipation effect. The welders will automatically shut down when overheated and overload. Also the Fan cooling system will works when needed, reduce the dust into machine also provide long life using.
SILVEL MIG Welder Specification:
A: Function Switch, B: Smart Digital Display, C: Voltage Control Knob, D: Wire Speed Adjustment Knob,
E: MIG Torch, F: Grounding Clip, G: Welding Holder, H: Welding Brush, I: Welding Mask
4 IN 1 Welding Mode:
MIG MODE (GAS)
Plug the connector of the welding ground clamp cable into the Negative Terminal (–) of the Welder.
Plug the connector of the short cable on welder front panel into the Positive Terminal (+) of the Welder.
(Gas cylinder connection required)
MIG MODE (GASLESS)
Plug the connector of the welding ground clamp cable into the Positive Terminal (+) of the Welder.
Plug the connector of the short cable on welder front panel into the Negative Terminal (–) of the Welde
STICK/ARC/MMA
Plug the connector of the welding ground clamp cable into the Negative Terminal (–) of the Welder.
Plug the connector of the welding welding holder cable into the Positive Terminal (+) of the Welder.
Lift TIG
Plug the connector of the welding ground clamp cable into the Positive Terminal (+) of the Welder.
Plug the connector of the welding TIG torch cable into the Negative Terminal (–) of the Welder.
(Lift tig torch not included inside product)
(Gas cylinder connection required)
Important information
Bulb Voltage
110 volts_of_alternating_current
